Ortofon Concorde MK2 DJ

Ortofon Concorde MK2 DJ

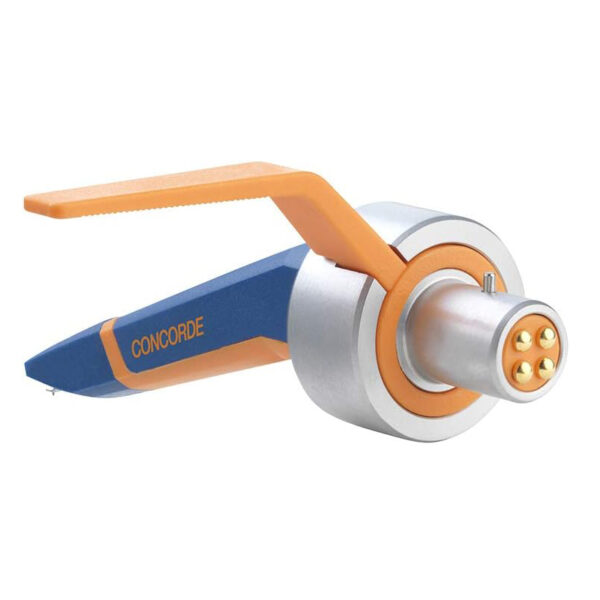

Concorde MKII DJ
The Concorde DJ is considered the jack-of-all-trades, boasting accurate sound reproduction and excellent groove handling. Not only does the cartridge have a most sufficient tracking ability, it also provides the DJs with the most needed stringency and very low record wear.

Specifications

DJs are the new rockstars

Excellent groove handling

Accuracy level
The DJ is great for any style of music. It has a spherical stylus and an extremely balanced cantilever that provides outstanding rigidity. Not only does the cartridge have a most sufficient tracking ability, it also provides the DJs with the most needed stringency and very low record wear. All in all: improved tracking, alongside of accurate sound reproduction and an excellent groove handling.

Output
The Concorde MKII DJ cartridge guarantees exceptional sound quality and precise tracking capabilities. Additionally, it offers a balanced output of 6 mV and remarkable transparency across the entire sonic spectrum.

Musical combo for your live sets

The DJ in action

DJ ND presents a musical combo which can be used to spice up your livestreams and podcasts.

Specifications
Channel balance at 1 kHz 1 dB
Output voltage at 1 kHz, 5cm/sec 6 mV
Channel seperation at 1 kHz 22 dB
Channel seperation at 15 kHz 15 dB
Tracking ability at 315Hz at recommended tracking force 100 μm
Compliance, dynamic, lateral 14 μm/m N
Stylus type Spherical
Stylus tip radius R 18 μm
Tracking force range 3 - 5 g
Tracking force, recommended 4 g
Internal impedance, DC resistance 700 Ohm
Cartridge weight 18,5 g
Recommended load resistance 47 kOhm
Internal inductance 450 mH
Recommended load capacitance 200-600 pF
Replacement stylus
Stylus CC MKII DJ
